Calibration Bench Modules


Time Electronics 7047 - Variable AC/DC Power Supply Modules

The 7046 and 7047 are primarily variable AC power supply modules with the capability to provide DC power also. Both modules are highly versatile and incorporate various functions and features for increased usability.

by quote only

The 7046 and 7047 are primarily variable AC power supply modules with the capability to pr...

View Product

Time Electronics 7170 - Power & Harmonics Analyser Module

The 7170 is a fast, easy to use mains and harmonics analyser with a large and high resolution graphical display, capable of continuous real-time analysis. It is intended primarily as a dedicated harmonics and flicker analyser for compliance quality measurements, but it can also be used as a general purpose mains analyser.

by quote only

The 7170 is a fast, easy to use mains and harmonics analyser with a large and high resolut...

View Product

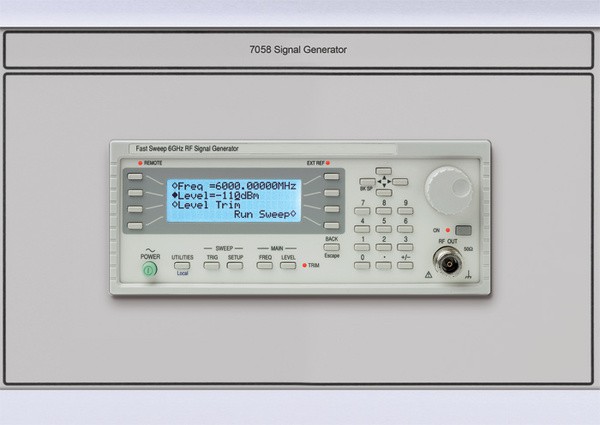

Time Electronics 7058 - 8 RF Signal Generator Module

The 7058 is a precison RF signal generator with a maximum frequency of 6GHz. It is intended for CW (carrier wave) applications where modulation is not required. Low phase noise is matched by low leakage, low residual FM and spurii. The internal timebase has a 1ppm stability, and an external frequency reference can be used for higher precision.

by quote only

The 7058 is a precison RF signal generator with a maximum frequency of 6GHz. It is intende...

View Product

Time Electronics 7048 - RF Signal Generator Module

The 7048 is a synthesised RF signal generator module that incorporate the essential features required for most development, test and service work, including high frequency accuracy and stability, wide dynamic range, low phase noise and leakage, and flexible modulation capabilities.

by quote only

The 7048 is a synthesised RF signal generator module that incorporate the essential featur...

View Product

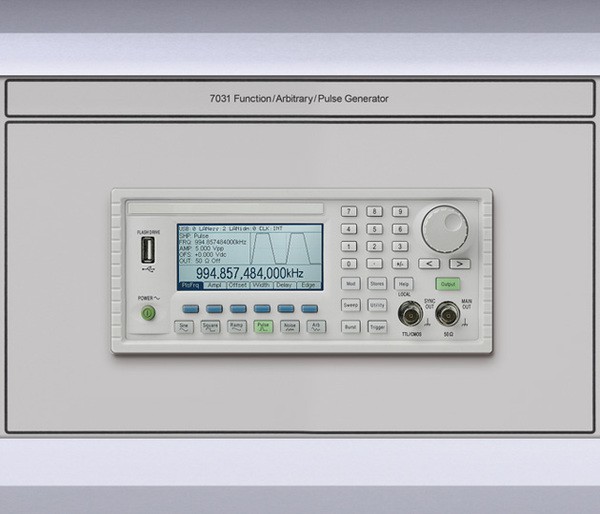

Time Electronics 7031 - Function Generator Module

Precision DDS function generators that offer high quality sine and square waves up to 25MHz (7029) and 50MHz (7031). Further features include noise generation, complex waveshapes, true pulse generator mode with variable rise and fall times, and 128K word arbitrary waveforms.Extensive internal and external modulation capabilities include AM, FM, PM, PWM & FSK using any waveshape including noise.

by quote only

Precision DDS function generators that offer high quality sine and square waves up to 25MH...

View Product

Time Electronics 7029 - Function Generator Module

Precision DDS function generators that offer high quality sine and square waves up to 25MHz (7029) and 50MHz (7031). Further features include noise generation, complex waveshapes, true pulse generator mode with variable rise and fall times, and 128K word arbitrary waveforms.Extensive internal and external modulation capabilities include AM, FM, PM, PWM & FSK using any waveshape including noise.

by quote only

Precision DDS function generators that offer high quality sine and square waves up to 25MH...

View Product

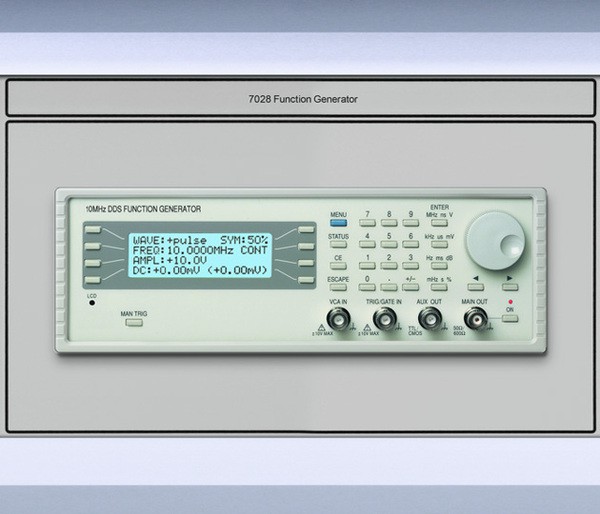

Time Electronics 7028 - Function Generator Module

A precision DDS function generator module with 0.001Hz to 10MHz frequency range, 6 digits or 1mHz resolution, and 1ppm stability and 10ppm one year accuracy . The 7028 is simple operation and features AM, FSK, gated and tone switching modes.

by quote only

A precision DDS function generator module with 0.001Hz to 10MHz frequency range, 6 digits ...

View Product

Time Electronics 7027 - Universal Frequency Counter Module

The 7027 is a high quality 3GHz universal frequency counter module which offers period measurement, frequency ratio, pulse width and event counting. It uses an advanced reciprocal frequency counting technique to achieve high resolution at all frequencies. A DC coupled input enables VLF measurements to be made (down to 1mHz). The timebase uses a high quality TCXO crystal with a very low ageing rate. An external reference can also be used. The large 10 digit LCD display has a full set of annunciators. Measurement times can be set between 0.3 seconds and 10 seconds.

by quote only

The 7027 is a high quality 3GHz universal frequency counter module which offers period mea...

View Product

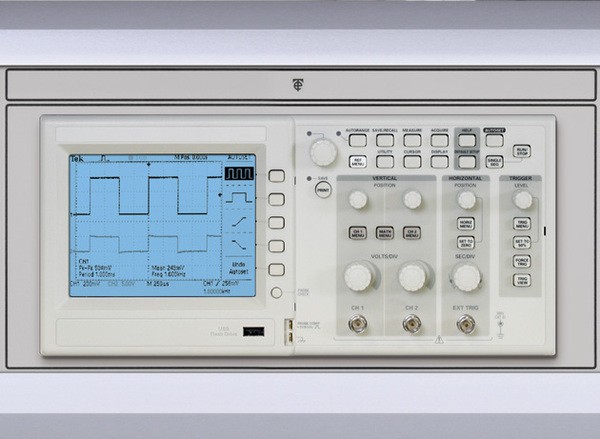

Time Electronics 7026 - Oscilloscope Module

CalBench consoles can be fitted with various oscilloscopes depending on customer requirements. Each scope offers excellent accuracy and high performance, and are ideal for maintenance of electronic equipment and general purpose laboratory work.

by quote only

CalBench consoles can be fitted with various oscilloscopes depending on customer requireme...

View Product

Time Electronics 7024 - Oscilloscope Module

CalBench consoles can be fitted with various oscilloscopes depending on customer requirements. Each scope offers excellent accuracy and high performance, and are ideal for maintenance of electronic equipment and general purpose laboratory work.

by quote only

CalBench consoles can be fitted with various oscilloscopes depending on customer requireme...

View Product
