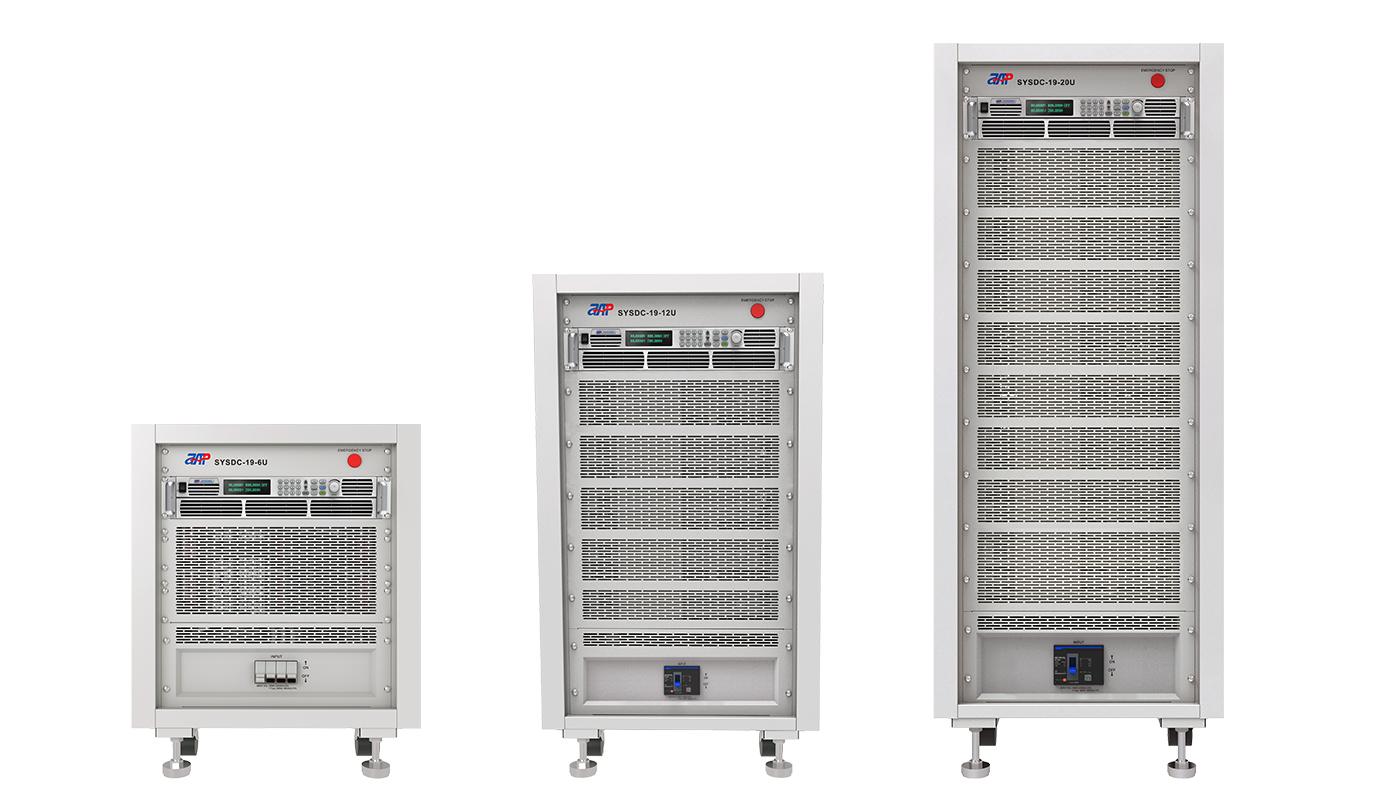

APM SYS192VDC24000W - 24000W Programmable DC Power System
Wide range automatic switch range mode
In the limit of constant output power, range of voltage and current could automatically switch which allow to output high voltage and low current at the same time as well as output low voltage and high current at the same time. It provides wider range in output. With only one unit, it could realize multi voltage and current combination which significantly increase use ratio.
Multiple choice of communication interface
Standard interface of this series include LAN, USB, RS485, RS232 and GPIB(OPTION). It support SCPI command that make it more convenient in using.
Multi-protection function, safe and reliability
Built-in OVP has faster response. Over voltage value could custom setting. When output voltage is higher than setting protection value, it will shut down power source immediately. You could feel safe to use. At the meanwhile, it contain OCP and OTP, which could perfectly protect you, load.
Support remote sensing and voltage compensation
This series is equipped with remote compensation interface, which could directly connect to load to compensate voltage drop because of lone time connect. It could make sure load acquire accurate voltage values.
- With accurate voltage and current measurement capability
- Coded knobs, multifunctional keyboard
- Standard RS232/LAN/RS485/USB interface, Optional for GPIB
- Remote sensing to compensate for voltage drop in load leads
- Support CV and CC automatically switch
- Function of editing List waveform
- Use SCPI commands
- CE certified
- OVP/OCP/OPP/OTP/SCP
Input
Voltage | 190~265VAC |
Frequency | 47~63Hz |
Phase | 3 Phase, 4 Wire + Ground / Y Connect |
Max. Current | 150A |
Input Power Max | 28.5kW |
Power Factor @ 220VAC Input (Full Load) | 0.98Min. Active PFC |
Efficiency | >88% Max @ Full Load and Units = 4kW Model |
Output
Output Voltage | 0~192V | ||||||||
Output Current | 0~200A | ||||||||
Output Power | 24kW Max | ||||||||
Load Regulation |
| ||||||||
Line Regulation |
| ||||||||
Voltage Setting |
| ||||||||
Current Setting |
| ||||||||
Ripple |
|
Measurement
Voltage Setting |
| ||||||||
Current Setting |
|
Extra Function
Remote Sense (Range) | 4V(DC), Max. Total power less than rated power |
Comm. Respondence. | 50ms |
Graphic Display | VFD |
Operation Key Feature | soft keys, numeric keys, rotary knob |
Rack Mount Handles | Yes |
Fan | Temperature Control |
Protection Circuits | OCP, OVP, OPP, OTP, FAN |
Interface | USB, RS485, RS232, LAN(Standard), GPIB(Option) |
Remote Control Input/Output Signal Characteristics
Remote Input Signal | Not Supported |
Remote Output Signal | Not Supported |
Environmental
Operating Temperature | 0˚C~40˚C |
Storage Temperature | -20˚C~70˚C |
Altitude | 2000m |
Relative Humidity | 10%-90%, non-condending |
Temperature Coefficient | 100ppm/˚C at Voltage, 300ppm/˚C at Current |
Mechanical
Dimensions (mm) | 600W x 963H x 700D |
Package Dimensions (mm) | 720W x 1160H x 820D |
Unit Net Weight | 100kg + 15kg * 6 (REF) |
Accessories Weight | 0.4kg |
Shipping Weight | 160kg + 15kg * 6 (REF) |
Regulatory Compliance
CE Mark | Installation Overvoltage Category II; Class II equipment; indoor use only. |
