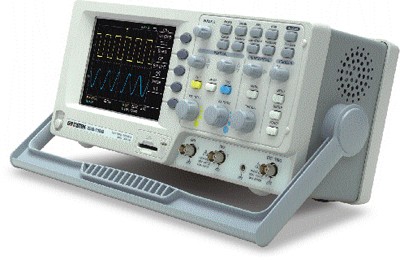

GW Instek GDS-1022 - 25MHz, 2-Channel Lightweight Digital Storage Oscilloscope with Color LCD Display
Overview
Features
Specifications
Calibration
- 25 MHz Bandwidth
- 2 Input Channels
- 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
- 4k Memory Length per Channel
- Peak Detect as Fast as 10ns
- Save/Recall of 15 Front Panel Settings & Waveforms
- 5.6 TFT Color Display
- 19 Auto Measurements
- Timebase Range: 1nS ~ 10nS/div
- USB Port for PC Connection
- Math Operators - Add, Subtract, FFT
- 6-Digit Real-Time Frequency Counter
- 25 MHz Bandwidth
- 2 Input Channels
- 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
- 4k Memory Length per Channel
- Peak Detect as Fast as 10ns
- Save/Recall of 15 Front Panel Settings & Waveforms
- 5.6 TFT Color Display
- 19 Auto Measurements
- Timebase Range: 1nS ~ 10nS/div
- USB Port for PC Connection
- Math Operators - Add, Subtract, FFT
- 6-Digit Real-Time Frequency Counter
| SPECIFICATIONS | ||
|
|
|
|
| Channels |
2
|
|
| Bandwidth |
DC ~ 25MHz (-3dB)
|
|
| Rise Time |
<14ns Approx.
|
|
| Sensitivity |
2mV/div ~ 5V/div (1-2-5 increments)
|
|
| Accuracy |
±±(3% x |Readout|+0.1 div + 1mV)
|
|
| Input Coupling |
AC, DC & Ground
|
|
| Input Impedance |
1M±2%, ~16pF
|
|
| Polarity |
Normal & Invert
|
|
| Maximum Input |
300V (DC+AC peak), CATII
|
|
| Waveform Signal Process |
+ , - , FFT
|
|
| Offset Range |
2mV/div ~ 50mV/div : ±0.4V, 100mV/div ~ 500mV/div : ±4V, 1V/div ~ 5V/div : ±40V
|
|
| Bandwidth Limit |
20MHz (-3dB)
|
|
|
|
||
|
TRIGGER |
||
| Sources |
CH1 , CH2 , Line , EXT
|
|
| Modes |
Auto, Normal, Single, TV, Edge, Pulse Width
|
|
| Coupling |
AC , DC , LF rej. , HF rej. , Noise rej.
|
|
| Sensitivity |
DC ~ 25MHz : Approx. 0.5div or 5mV |
|
|
|
||
|
EXT TRIGGER |
||
| Range |
±15V
|
|
| Sensitivity |
DC ~ 30MHz : ~ 50mV ; 30M ~ 60MHz : ~100mV
|
|
| Input Impedance |
1MO±2% , ~ 16pF
|
|
| Maximum Input |
300V (DC AC peak) , CATII |
|
|
|
||
|
HORIZONTAL |
||
| Range |
1ns/div ~ 10s/div (1-2-5 increments); ROLL : 250ms/div ~ 10s/div
|
|
| Modes |
MAIN, WINDOW, WINDOW ZOOM, ROLL, SCAN, X-Y
|
|
| Accuracy |
+0.01%
|
|
| Pre-Trigger |
10 div maximum
|
|
| Post-Trigger |
1000 div
|
|
|
|
||
|
X-Y MODE |
||
| X-Axis Input |
Channel 1
|
|
| Y-Axis Input |
Channel 2
|
|
| Phase Shift |
±3° at 100kHz
|
|
|
|
||
|
SIGNAL ACQUISITION |
||
| Real-Time Sample Rate |
250MSa/s maximum
|
|
| Equivalent Sample Rate |
25GSa/s maximum
|
|
| Vertical Resolution |
8 Bits
|
|
| Record Length | 4K Dots maximum | |
| Acquisition Mode | Normal, Peak Detect, Average | |
| Peak Detection | 10ns (500ns/div ~ 10s/div) | |
| Average | 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256 | |
|
|
||
|
CURSORS & MEASUREMENT |
||
| Voltage Measurement |
Vpp , Vamp , V avg , Vrms , Vhi , V l o , Vmax , Vmin , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot
|
|
| Time Measurement | Freq , Period , Rise Time , Fall Time , Positive Width , NegativeWidth , Duty Cycle | |
| Cursors Measurement |
Voltage difference between cursors (ΔV)) Time difference between cursors (ΔT) |
|
| Auto Counter |
Resolution : 6 digits |
|
|
|
||
|
CONTROL PANEL FUNCTION |
||
| Autoset |
Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level
|
|
| Save Setup |
Up to 15 sets of measurement conditions |
|
| Save Waveform |
15 sets of waveform |
|
|
|
||
|
DISPLAY |
||
| TFT LCD Type |
5.6 inch
|
|
| Display Resolution |
234 (Vertically) x 320 (Horizontally) Dots
|
|
| Display Graticule |
8 x 10 divisions
|
|
| Display Brightness |
Adjustable
|
|
|
|
||
|
INTERFACE |
||
| USB Slave Connector |
USB1.1 & 2.0 full speed compatible (printers and flash disk not supported)
|
|
| SD Card Slot |
Image (BMP), waveform data (CSV), and setup (SET)
|
|
|
|
||
| POWER SOURCE | ||
| Line Voltage Range |
AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
|
|
|
|
||
| MISCELLANEOUS | ||
| Multi-Language Menu | Available | |
| Online Help | Available | |
|
|
||
| ACCESSORIES |
User manual x 1 |
|
| DIMENSIONS & WEIGHT |
254D x 142H x 310W(mm) |
|
| OPTION | ||
|
MODEL
|
NAME
|
DESCRIPTION
|
|
GTP-060A-2
|
Probe
|
10:1 DC~60MHz, 1:1 DC~6MHz For GDS-806C/806S/1022/1042/1062/2062/2064
|
|
GTL-110
|
BNC Cable
|
BNC Female - BNC Female For GDS Series, GFC-8131H/8270H, GOS Series, GRG-450B, GRS-6052A/6032A, GSG-120/122, SFG-830
|
|
GTL-242
|
USB Cable
|
For: GDB-02, GDS-800 Series, GDS-1000 Series, GDS-2000 Series, GPD-3303S
|
|
GDB-02
|
Oscilloscope Education and Training Kit
|
For GDS-800 Series, GDS-1000 Series, GDS-2000 Series
|
Do you have a 25MHz, 2-Channel Lightweight Digital Storage Oscilloscope with Color LCD Display that needs to be calibrated?
We offer standard traceable calibration and ISO 17025 accredited calibration services.
Get your 25MHz, 2-Channel Lightweight Digital Storage Oscilloscope with Color LCD Display calibrated today! Click Here!
