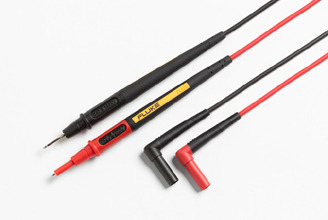

Fluke TL175 - TwistGuardTM Test Leads

The Fluke TL175 TwistGuard™ Test Leads offer adjustable length test tips for use in different measurement environments. Fluke TL175's are the only test leads as tough as your meter.

• TwistGuard™ adjustable tips enhance safety and versatility length
• WearGuard™ indicator shows damage to leads
• Heavy duty strain relief withstands over 30,000 bends

• Patented TwistGuard™ extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements
• New WearGuard™ lead wire wear indication. Each test lead is covered by two layers of silicone insulation; inner contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement
• Double insulated silicone leads. TL175 test leads withstand high temperatures and remain flexible in cold temperatures
• Extra-heavy duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure
• Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs
• Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
• TL175E also available. Includes removable 4 mm lantern tips that thread onto the lead tip
• Probes always show correct category rating for tip being used
• Environmental ratings: -20 °C to 55 °C (-4 °F to 131 °F), altitude: 2000 m (6,562 ft)
• Conforms to EN61010-031
• One-year warranty

Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
Exposed probe tip length: 19 mm to 4 mm (0.75 inch to 0.16 inch)
Environmental ratings: -20 °C to 55 °C (-4 °F to 131 °F), altitude: 2000 m (6,562 ft)

TL175E also available. Includes removable 4 mm lantern tips that thread onto the lead tip.
Conforms to EN61010-031
