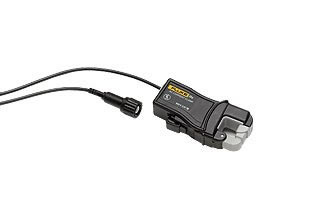

Fluke I5S - AC Current Clamp
Overview
Features
Specifications
Calibration
Expand the use of your Fluke 430 series power quality tool or ScopeMeter test tool with this 5 A ac current clamp, specially configured to provide good accuracy at low levels e.g. while taking measurements on secondary current transformers.
- Low level current clamp measures up to 5 A ac
- Compact shape makes transporting and storing convenient; the clamp measures only 116 x 43 x 23 mm (4. 6 x 1.7 x .9 inches)
- Take accurate readings without breaking the circuit
- CAT III 600 V (For insulated conductors only)
| Specifications | ||
| Nominal current range | 5 A | |
| Continuous current range | 10 mA to 6 A | |
| Maximum Non-Destructive Current | 70 A | |
| Lowest measurable current | 10 mA | |
| Basic Accuracy | 48 Hz to 65 Hz | |
| 10 mA to 1 A | 1% + 5 mA | |
| 1 A to 5 A | 1% | |
| Useable frequency | 40 Hz to 5 kHz | |
| Output level(s) | 400 mV/A | |
| Input Load Impedance | > 1 MΩ in parallel with up to 47 pF | |
| Crest Factor | ≤ 3, add 0.7% to accuracy | |
| Safety Specifications | ||
| Safety | CAT III 600 V per IEC/EN61010-1, Pollution Degree 2 | |
| Maximum voltage | 600 V ac | |
| Mechanical & General Specifications | ||
| Warranty | 1 year | |
| Maximum conductor diameter | 15 mm | |
| Output cable length | 2.5 m | |
| BNC Adapter | Yes | |
| BNC to banana adapter included | No | |
Do you have a AC Current Clamp that needs to be calibrated?
We offer standard traceable calibration and ISO 17025 accredited calibration services.
