Graphtec America GL7000 - Data Platform
The next generation Data Acquisition unit. To measure the selected signal on demand with the selected number of channels and time interval.
- Modular system allows expansion of measurements and channels
- Suitable for a variety of measurements by different type of amplifier
- Myltiple storages for reliable long term measurement
- Easy operation with large display and touch panel
- Support stand-alone operation and embedding into a system
- High performance application software
- Modules and External dimensions
A wide variety of measurements can be supported by the amplifier module
Measurements for different applications can be added to the amplifier module. It is also possible to mix measurements by adding different types of modules.
The Voltage module, Voltage/Temperature module, High Speed Voltage module and Logic/Pulse models are available. The other modules will be released sequentially starting in the autumn of 2012.
Amplifier can be attached to up to 10 modules
Up to 10 amplifier modules can be attached for multi-channel measurements, with up to 112 channels on one GL7000.
Maintains sampling speed even if the number of amplifier modules are increased
Voltage* and Volt/Temp amplifier can maintain high-speed and multi-channel measurements without dropping the sampling speed, even if the number of modules are increased.
* In the High-speed voltage and Logic/Pulse module, the sampling speed will be limited by the recording medium.
Require more channels
Multi-channel measurement is possible to 1120 channels using the PC
Up to 10 units of the GL7000 can be connected to 1 PC through LAN or USB and controlled using the software.
Up to 5 units of the GL7000 can be fully synchronized using the sync. Cable
The start/stop trigger, and sampling can be synchronized in the GL7000 when they are connected by a sync cable. The master and slave units are automatically identified.
Suitable for a variety of measurements due to flexible module combinations
Four type of modules are available.
Voltage ModuleThe output of various sensors such as displacement, pressure, wind speed, etc. |
Voltage/Temperature ModuleMeasuring temperature and voltage simultaneously. For environmental tests, etc. |
High Speed Voltage ModuleMeasurement of parameters in the inverter system, vibration test, drop test, etc. |
Logic/Pulse ModuleTiming of system control signal, encoder output, rotational speed, flow rate, etc. |
High Voltage ModuleMeasurement of the high voltage in the power line of equipment, Electric or Hybrid Vehicle testing, etc. |
Charge ModuleMeasuring the output of sensor using the Piezoelectric device. Measurement of the vibration, acceleration, pressure, force, etc.
|
Voltage Output ModuleAn analog voltage corresponding to the captured data is output. Simulation testing by the actual measured data, the vibration test, etc.
|
Power Measurement ModuleMeasuring the voltage, current and power. Measurement of the power line of the device, etc
|
DC Strain ModuleMeasuring the output of sensor using the strain gauge. Measurement of the load, displacement, vibration, acceleration, torque, pressure, etc.
|
|
Multiple storages for reliable long term measurement
Supports four destinations to save the captured data according to the conditions of the measurement
1. Built-in RAM
The RAM to save 2 million samples is built into each amplifier module. The data capture duration does not decrease with increasing numbers of channels because the built-in RAM for each amplifier module is used.
2. Built-in Flash memory
The 2GB of Flash memory is built into the main module. The captured data can be saved directly to the built-in Flash memory when the sampling is not faster than 1ms (sampling speed: 1 k Samples/s). Saved data is retained even when power is turned off because flash memory is used.
3. SD memory card
SD card slot (supports SDHC, up to 32GB) is standard on the main module. The captured data can be saved directly to the SD memory card when the sampling is not faster than 1ms (sampling speed: 1 k Samples/s). It supports hot-swap, so the SD memory card can be replaced during measurement without data loss.* The captured data can be transferred easily to the PC in offline condition.
* The hot-swap is possible when the sampling is slower than 100ms.
4. SSD module (64GB)
Allows large amounts of data to be quickly saved when the optional SSD module is attached. The captured data can be saved directly to the SSD when the sampling is not faster than 1µs (sampling speed: 1 M Samples/s).* It has a high vibration resistance and saved data is also retained even when power is turned off.
* The number of modules are limited.
FTP client function
Captured data is periodically transferred to the FTP server for backup when the GL7000 is connected to the LAN (Local Area Network).
Easy operation with large display and touch panel
Improved ease-of-use with the high-definition display and touch panel
The touch panel makes setting the conditions intuitive, and it can also be operated using the cursor keys similar to the GL series.

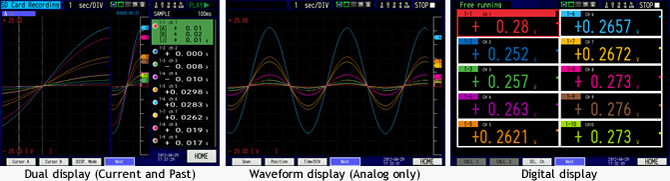

Large easy-to-read 5.7-inch high-definition LCD monitor
Utilises a bright clear 5.7 inch wide TFT color LCD monitor (VGA: 640 x 480 dots). Makes it easy to read data in wave form or digital form and to check measurement parameter settings.

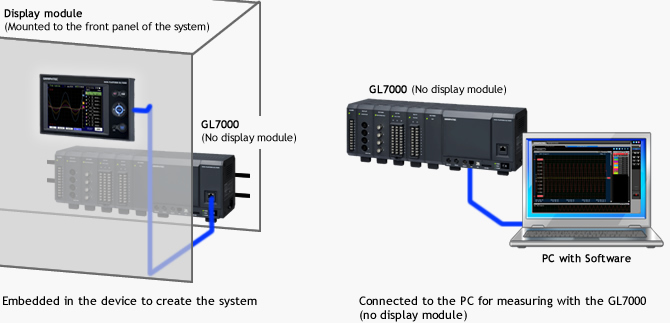

Support stand-alone operation and embedding into a system
The detachable display module allows both stand-alone and embedded system configurations
Measurement settings and signal measurement can both be done without a PC by attaching the display module. The display module can be moved to different locations for remote operation by connecting it to the main module with a LAN cable*, it also can be embedded into the system. The module can still be operated by the PC even when the display module is connected.
* Up to 10m using CAT5 LAN cable (straight connection)
High performance application software
Software for high performance and easy operation
The GL7000 can be controlled by the GL-Connection software that is included. The software has convenient functions such as saving data to the PC, replaying captured data, and converting data form. It is an integrated application software for the GL series, the GL900, GL820 and GL220 can also be connected.*
* The version for supporting other GL series will be available in December 2012.
Various measurement screens
The measurement signal can be displayed as various types of screens by the unit, the module or the specific channels that are specified in the group function. It can also be displayed as a combination of the capturing data and captured data, the Y-T format and the X-Y format, simultaneously. Up to 112 channels can be displayed in each window.*
* In case of using dual screen, total 244 channels can be displayed.

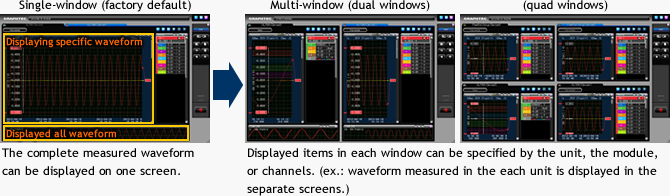

Multi-window function, measured waveform can be displayed in various forms using multiple windows
Useful functions
For real time and the post processing.
- Statistical Calculation
The maximum, minimum, peak, and average values are displayed while capturing data. The value between the cursors of the maximum, minimum, peak, average, and RMS will be displayed when replaying captured data. - File operation
The data can be converted to the CSV format for a specified period, all data, or multiple files. A file can also be created by compressing or consolidating multiple files. - Search
The search point can be set by the level, alarm, or time (the beginning of the data, center, end, trigger point, the specified time, instruction time, the number specified). - Send mail
Alarm warnings can be sent via Email.

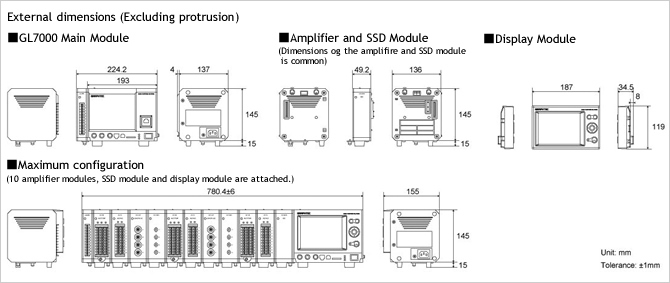

Modules and External dimensions
Item | Model number | Remarks |
---|---|---|
Main Module | GL7000 | GL7000 main controller module (Alarm output terminal is included.) |
Display Module | GL7-DISP | Display and operation module (LCD with touch panel) |
SSD Module | GL7-SSD | Storage (SSD 64GB) |
Voltage Module | GL7-V | Voltage measurement module |
Voltage/Temperature Module | GL7-M | Voltage and temperature measurement module |
High Speed Voltage Module | GL7-HSV | High speed voltage measurement module |
Logic/Pulse Module | GL7-L/P | Logic pattern or pulse count module |
- Wide variety of measurements can be supported by the amplifier module
- Amplifier can be attached to up to 10 modules
- Maintain sampling speed even if the number of amplifier modules are increased
- Up to 5 units of the GL7000 can be fully sychronized using the sync cable
- Suitable for a variety of measurements due to flexible module combinations
- Multiple storages for reliable long term measurement
- FTP client function
- Easy operation with large display and touch panel
- Large easy-to-read 5.7-inch high-definition LCD monitor
- Support stand-alone operation and embedding into a system
- High performance application software
- Various measurement screens
Sampling speed
Amplifier Module | Channels in 1 module | Max. sampling speed in the module | Media type to save data | Max. sampling speed in the GL7000 | ||
---|---|---|---|---|---|---|
Attached to 1 or 2 modules | Attached to3 or 4 modules | Attached to 5 to 10 modules | ||||
Voltage Module (GL7-V) |
10 channels | 1 k Samples/s (1ms interval) |
Built-in RAM | 1 k Samples/s (1ms interval) |
||
Built-in Flash | ||||||
SD card | ||||||
SSD *3 | ||||||
Volt./Temp. Module (GL7-M) |
10 channels | 100 Samples/s (10ms interval) |
Built-in RAM | 100 Samples/s (10ms interval) |
||
Built-in Flash | ||||||
SD card | ||||||
SSD *3 | ||||||
High-speed voltage Module (GL7-HSV) |
4 channels | 1 M Samples/s (1μs interval) |
Built-in RAM | 1 M Samples/s (1μs interval) |
||
Built-in Flash | 1 k Samples/s (1ms interval) |
|||||
SD card | ||||||
SSD *3 | 1 M S/s (1μs interval) |
500 k S/s (2μs interval) |
200 k S/s (5μs interval) |
|||
Logic/Pulse Module (GL-L/P) |
16 channels | In Logic mode,1 M Samples/s (1μs interval) |
Built-in RAM | 1 M Samples/s (1μs interval) *1 |
||
Built-in Flash | 1 k Samples/s (1ms interval) *1 |
|||||
SD card | ||||||
SSD *3 | 1 M S/s (1μs interval) |
500 k S/s (2μs interval) |
200k S/s (5μs interval) *1 |
|||
In Pulse mode,10 k Samples/s (100μs interval) |
Built-in RAM | 1 M S/s (1μs interval) |
Not Available *2 | |||
Built-in Flash | 1 k S/s (1ms interval) |
|||||
SD card | ||||||
SSD *3 | 1 M S/s (1μs interval) |
- Using in Logic mode, the module can be attached up to 7 units.
- Using in Pulse mode, module can be attached up to 2 units.
- SSD module is an option. Number of channels for pulse input will be limited when the High-speed voltage module and Logic/Pulse module are used simultaneously.
Amplifier module
Module | Voltage | High Speed Voltage | Voltage/Temperature | Logic/Pulse |
---|---|---|---|---|
Model number | GL7-V | GL7-HSV | GL7-M | GL7-L/P |
Number of input channels | 10 channels | 4 channels | 10 channels | 16 channels |
Input terminal | Screw terminal (M3) |
BNC connector | Screw terminal (M3) |
Specific connector |
Input method | All channel isolated unbalanced input, simultaneous sampling | All channels isolated balanced input, scanning channels for sampling | All channels common ground, simultaneous sampling | |
Sampling speed | 1 k Samples/s to 1 Sample/h (1ms to 1hr. interval) |
1 M Samples/s to 1 Sample/h (1μs to 1hr. interval) |
100 Samples/s at 1-10ch to 1 Sample/h (10ms at 1-10ch to 1hr. interval) |
Logic mode: up to 1 M Samples/s (1μs interval) Pulse mode: up to 10 k Samples/s (100μs interval) |
Measurement range | 100mV to 100V F.S., and 1-5V F.S. | Volt.: 20mV to 50V F.S., and 1-5V F.S. Temp.:Thermocouple: K, J, E, T, R, S, B, N, W (WRe5-26) RTD: Pt100 (IEC751), Pt1000 (IEC751), Pt100J (JIS) |
Bi-level signal, up to 24V Select either Logic or Pulse mode Logic: Signal pattern Pulse: Counting in Instant, Accumulating, Rotation (max. 15 million count) |
|
A/D converter | Successive Approximation, 16 bits | Sigma-delta, 16 bits | ||
Withstand voltage | Between channels: 1000 V, 1min. Between inputs and GND: 1000 V, 1 min. |
Between channels: 350 V, 1 min. Between inputs and GND: 350 V, 1 min. |
||
Built-in RAM | 2 million samples |
Capturing times *1
Single module attached | |||||||||
Amplifier Module | Storage Device | Device Capacity | Total number of channels | Sampling speed (interval) | |||||
---|---|---|---|---|---|---|---|---|---|
1 M S/s (1µs) | 500 k S/s (2µs) | 200 k S/s (5µs) | 1 k S/s (1ms) | 100 S/s (10ms) | 1 S/s (1s) | ||||
Voltage Module (GL7-V) |
Built-in RAM | 2 M samples | 10 channels | N/A | N/A | N/A | 33 min. | 5 hrs. | 23 days |
Built-in Flash memory | 1.87GB | 21 hrs. | 8 days | 893 days | |||||
SD memory card *2 | 32GB is attached | 22 hrs. | 9 days | 956 days | |||||
SSD *2 | 64GB | ||||||||
Volt./Temp. Module (GL7-M) |
Built-in RAM | 2 M samples | 10 channels | N/A | N/A | N/A | N/A | 5 hrs. | 23 days |
Built-in Flash memory | 1.87GB | 8 days | 893 days | ||||||
SD memory card *2 | 32GB is attached | 9 days | 956 days | ||||||
SSD *2 | 64GB | ||||||||
High-speed Voltage Module (GL7-HSV) |
Built-in RAM | 2 M samples | 4 channels | 2 sec. | 4 sec. | 10 sec. | 33 min. | 5 hrs. | 23 days |
Built-in Flash memory | 1.87GB | N/A | N/A | N/A | 39 hrs. | 16 days | 1660 days | ||
SD memory card *2 | 32GB is attached | 42 hrs. | 17 days | 1775 days | |||||
SSD *2 | 64GB | 134 sec. | 268 sec. | 671 sec. | |||||
10 modules attached | |||||||||
Amplifier Module | Storage Device | Device Capacity | Total number of channels | Sampling speed (interval) | |||||
1 M S/s (1µs) | 500 k S/s (2µs) | 200 k S/s (5µs) | 1 k S/s (1ms) | 100 S/s (10ms) | 1 S/s (1s) | ||||
Voltage Module (GL7-V) |
Built-in RAM | 2 M samples | 100 channels | N/A | N/A | N/A | 33 min. | 5 hrs. | 23 days |
Built-in Flash memory | 1.87GB | 2 hrs. | 24 hrs. | 103 days | |||||
SD memory card *2 | 32GB is attached | 2 hrs. | 26 hrs | 111 days | |||||
SSD *2 | 64GB | ||||||||
Volt./Temp. Module (GL7-M) |
Built-in RAM | 2 M samples | 100 channels | N/A | N/A | N/A | N/A | 5 hrs. | 23 days |
Built-in Flash memory | 1.87GB | 24 hrs. | 103 days | ||||||
SD memory card *2 | 32GB is attached | 26 hrs. | 111 days | ||||||
SSD *2 | 64GB | ||||||||
High-speed Voltage Module (GL7-HSV) |
Built-in RAM | 2 M samples | 40 channels | 2 sec. | 4 sec. | 10 sec. | 33 min. | 5 hrs. | 23 days |
Built-in Flash memory | 1.87GB | N/A | N/A | N/A | 5 hrs. | 53 hrs. | 223 days | ||
SD memory card *2 | 32GB is attached | 5 hrs. | 57 hrs. | 239 days | |||||
SSD *2 | 64GB | 95 sec |
- *1:
- The capturing time figures are approximate.
- *2:
- The file size of the captured data is limited up to 2GB.
