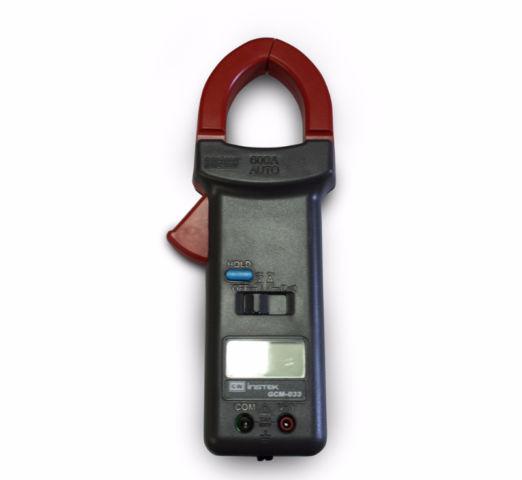

GW Instek GCM-033 - Clamp Meter

Clamp Meter

GW Instek

Category : Clamp Meter

Sale : $50 (USD)
$79 (USD)
Add to Cart

Documents:
Datasheet

Overview
Features
Information
Calibration

This product has been discontinued. Our replacement recommendation is the GCM-302 - GW Instek Mini Clamp Meter

Quality Discontinued Clearance Product

4000 Count High Resolution
AC 600A, 600V Capability
1.2% Basic ACV Accuracy
1.9% Basic ACA Accuracy
2.0% Basic Ohm Accuracy
Auto Ranging
Auto Power Off
Display Hold Function
Continuity Beeper
600V Circuit Protection
Hand Guard Protection
Insulated Input Jacks
Up to 40mm Diameter (750MCM) Conductor
Drop Proof to 4 Feet
Carrying Case Included



  • 4000 Count High Resolution
  • AC 600A, 600V Capability
  • 1.2% Basic ACV Accuracy
  • 1.9% Basic ACA Accuracy
  • 2.0% Basic Ohm Accuracy
  • Auto Ranging
  • Auto Power Off
  • Display Hold Function
  • Continuity Beeper
  • 600V Circuit Protection
  • Hand Guard Protection
  • Insulated Input Jacks
  • Up to 40mm Diameter (750MCM) Conductor
  • Drop Proof to 4 Feet
  • Carrying Case Included



AC Voltage (40Hz ~ 500Hz)

Range 400V, 600V
Resolution 0.1V in 400Vrange
Accuracy ±(1.2%rdg+5d)
Input Impedance 10MW//<100pF
Conversion Type Average sensing RMSindicating

AC Current

Range 400A, 600A
Resolution 0.1A in 400A rang
Accuracy 50Hz~60Hz
±(1.9%rdg+5d),0~400A
±(2.9%rdg+5d),400~600A
Conversion Type Average sensing RMS indicating

Resistance

Range 4kW, 40kW
Resolution 1W in the 4kW range
Accuracy ±(2%rdg + 9d)
Overload Protection 600V RMS

General

Continuity Beeper Buzzer sounds if resistance less than 100W
Type of Sensing Current transformer sensing
Display LCD digital readout; 4000 count
Measuring Rate 4 Times per second; nominal
Overrange indication " OL "
Low Battery Indicator
Auto Power Off 30 Minutes
Shock Proof 4 feet drops
Maximum Conductor Size Ø40mm
Maximum Jaw Opening 42mm
Power Source Single 9V battery (NEDA 1604, IEC 6F22)
Accessories Instruction manual x 1
Test Lead
Battery(ZnC)
Carrying case
Dimensions & Weight 88(W) x 36(H) x 215(D)mm; Approx. 320g
