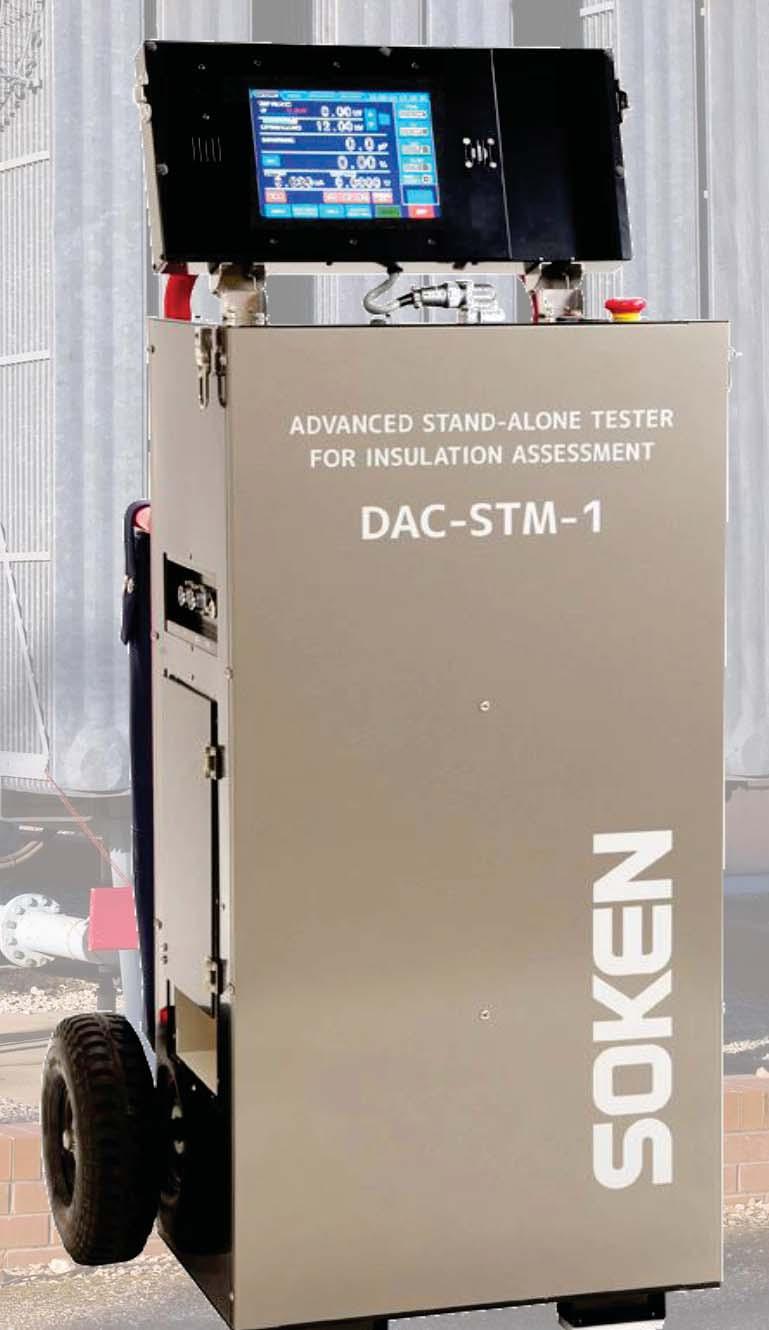

Soken DAC-STM-1 - Stand-alone AC insulation test system
DAC-STM-1 is a standalone and movable test system in one box providing a built-in high-voltage testing power supply. Simplified operations and automatic testing mode change are realized, that is, setting and measuring time can be greatly reduced. Compact in size for testing site, Low center of gravity, it is designed to be very stable and easily even moving with only two wheels. DAC-STM-1 strongly supports to complete quickly your on-site measurement.
Application
- Performance and Maintenance Test of Power Transformers
- Factory test of Railway Motors
- Maintenance Test of Generators and Motors
- Insulation Oil and Materials Test
Specimen
- Power Transformers
- Power Cables
- Generators, Motors, Rotators and Bar Coils
- Capacitors, Insulators and Bushings
- Insulation Oil and Materials
Measuring Parameters
- tanδ
- P.F.
- Capacitance
- Inductance
UST, GST, GSTg Change Circuit Inside
Conventionally, measuring cables have to be changed in accordance with testing modes. However DAC-STM-1is provided with a change circuits that automatically change CH-L, CH-T or CH-G.
- This instrument has a built-in testing power supply, and is easy to move and set connections, enabling quick setup and start measurement in a moment.
- Introducing high voltage CT method, reliable measurement without being affected by stray current in grounding.
- Providing a change circuit of UST, GST and GSTg mode, automatic measurement through the three mode can be quickly done without changing connections
- Applicable to a transformer with Tertiary winding.
- Providing Induced Emission and Polarity Change, advantageous to test on sites where are prone to inductive interference
General Specifications
| Measuring Mode |
|
| Functions |
|
| tanδ | 0.00 - 100% |
| P.F. | 0.00 - 70% |
| Capacitance | 100pF - 100nF/12kV, 50pF-50nF/1kV, 100nF-1µF/100V |
| Inductance | 10.0H - 10000H |
| Testing Voltage | 100V - 12kV / 10V-1200V(1uF range, Oil Test Mode) |
| Test Current | 0.01mA - 1A |
| Testing Frequency | 50/60Hz line |
| Output Current | 83.3mA continuous / 12kV |
| Output Power | 1kVA continuous / 2kVA 60 minutes / 3kVA 8 minutes |
| Built-In STD Capacitor | 500pF ± 10% / tanδ <0.02% |
| Input Power | 100-120VAC (or 200-240VAC), 50/60Hz |
| Size | W452 x H994 x D312 (mm) (no projections) |
| Weight | approx. 80kg |
| Working Temperature | -10°C ~ 50°C |
| Working Humidity | 5% - 95% Relative Humidity (no dew) |
| Accessories | Measuring Cable x 3, AC Cord x 1, Grounding Cable x 1, Accessories Bag, Warning Lamp |
Resolution / Measuring Accuracy (at 20°C)
| Parameter | Range | Resolution | Measuring Accuracy |
|---|---|---|---|
| tanδ | 2% 20% 100% |
0.01% 0.1% 1% |
±(0.02% +3%Rdg + 1Digit) |
| P.F. (cosθ) | 2% 20% 100% |
0.01% 0.1% 1% |
± (0.02 + 3%Rdg + 1Digit) |
| Capacitance | 500pF 5nF 50nF |
0.1pF 0.001nF 0.01nF |
±(0.3%Rdg +1Digit) |
| Inductance | 10000H 1000H 100H |
10H 1H 0.1H |
±(0.5%Rdg+1Digit) |
| Output Voltage | 100V-12kV 10V-1200V |
0.1kV 1V |
±(1%Rdg + 1Digit) |
| Test Current | 0.01mA-1A | 0.001mA | ±(1%Rdg+1Digit) |
| Watt Loss | 0-1000W | 0.0001W | ±(2%Rdg+2Digit) |
| Frequency | 45-70Hz | 0.1Hz | ±(0.1%Rdg+1Digit) |
