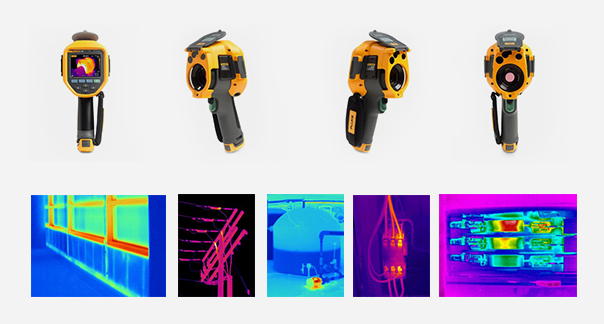

New Fluke Thermal Imagers Ti400, Ti300, and Ti200
Posted on October 02 2013Fluke is proud to announce the introduction of a new, advanced line of thermal imagers… the Ti400, Ti300, and Ti200. This trio of new Fluke infrared cameras is equipped with LaserSharp™ Auto Focus. Yes, there are other auto focus systems on the market but Fluke took it one step further so you get consistently in-focused images, Every. Single. Time.
Every infrared camera user knows that focus is the single most important thing to ensure when conducting an infrared inspection. Without an in-focus image temperature measurements may not be accurate and it’s much easier to miss a problem. LaserSharp™ auto focus tells you exactly where you are focusing. It uses a laser to calculate the distance to your target before it focuses. Place the red laser dot on the equipment you are inspecting, then pull and release the trigger for a perfect in-focus image.
Other Features and Benefits :
- Detect and communicate issues faster with patented Fluke IR-Fusion® with AutoBlend™ mode
- Faster communication with wireless image transfer directly to your PC, Apple® iPhone® or iPad®
- Capture up to five additional measurements with CNX™ Wireless System for more complete analysis and reporting.*
- One-handed, easy-to-use user interface
- Ruggedized capacitive high-resolution 640X480 touch screen for quick menu navigation
- Capture additional digital images to show location or additional site details with IR-PhotoNotes™ Annotation System
- Video recording both in standard and radiometric* formats
- More advanced display output options to get the details via streaming video to PC or high definition monitor (USB and HDMI)
- Text* and voice recording and annotation gets additional details traveling with the image file
- Optional interchangeable lenses for greater flexibility in specialized applications
- Rechargeable, field-replaceable smart batteries with LED display to show charge levels for excellent field flexibility
- High-temperature measurement (up to 1200 °C on the Ti400)
- 5 MP industrial-performance digital camera for high definition image quality
- Save to Micro SD Memory card, Save-to-USB, and 4GB onboard internal memory
- Cardinal Compass*
- Auto-Capture* (by time and interval) for special monitoring applications
- Included SmartView® and SmartView® Mobile App Analysis and Reporting Software
Basic Product Specifications
Ti400 |
Ti300 |
Ti200 |
|
Infrared resolution | 320X240 FPA Uncooled Microbolometer | 240X180 FPA Uncooled Microbolometer | 200X150 FPA Uncooled Microbolometer |
Focus mechanism | LaserSharp™ auto focus system and manual focus |
LaserSharp™ auto focus system and manual focus |
LaserSharp™ auto focus system and manual focus |
Thermal sensitivity (NETD) | ≤ 0.050 °C at 30 °C target temp (50 mK) |
≤ 0.050 °C at 30 °C target temp (50 mK) |
≤ 0.075 °C at 30 °C target temp (75 mK) |
Temperature measurement range | -20 °C to +1200 °C (-4 °F to +2192 °F) |
-20 °C to +600 °C (-4 °F to +1112 °F) |
-20 °C to +600 °C (-4 °F to +1112 °F) |
Temperature measurement accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
± 2 °C or 2 % (at 25 °C nominal, whichever is greater) | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
IR-Fusion® technology | Full infrared, PIP, Full visible, AutoBlend™ mode , Color alarms |
Full infrared, PIP, Full visible, AutoBlend™ mode , Color alarms |
Full infrared, PIP, Full visible, AutoBlend™ mode , Color alarms |
IR-Photonotes™ annotation system | Yes | Yes | Yes |
Voice annotation | Yes (60 seconds) | Yes (60 seconds) | Yes (60 seconds) |
Laser pointer/torch | Yes | Yes | Yes |
Streaming video output | HDMI and USB-to-PC | HDMI and USB-to-PC | HDMI and USB-to-PC |
Rechargeable batteries (4+ hours each) |
2 rugged lithium-ion smart batteries |
2 rugged lithium-ion smart batteries |
2 rugged lithium-ion smart batteries |
Wireless Connectivity | Yes | Yes | Yes |
Remote Control Capability | Yes | Yes | Yes |
Ruggedness and reliability | 2-meter drop test, IP54, integrated lens cap and guard |
2-meter drop test, IP54, integrated lens cap and guard |
2-meter drop test, IP54, integrated lens cap and guard |
Weight | 1.04 kg (2.3 lbs) | 1.04 kg (2.3 lbs) | 1.04 kg (2.3 lbs) |
Warranty | 2 years, with additional available |
2 years, with additional available |
2 years, with additional available |
Included Accessories
- SmartView® and SmartView® Mobile analysis and reporting software
- 4 GB Micro SD memory card
- USB connection cable for image transfer to PC
- 3m USB cable for streaming video to PC
- 3m HDMI cable for streaming video to HDMI-compatible devices
- Hand strap, for right or left-handed use
- 2 Lithium-Ion removable and rechargeable smart batteries
- AC charger/power supply with mains adapters for battery charging and AC operation
- Two-bay external battery charger
- Printed Users Manuals (5 languages) (additional languages available upon request)
- Electronic Users Manuals on CD (16 languages)
- Soft case with adjustable shoulder strap (shoulderstrap also can be used for imager)
- Rugged Fluke hard transport and storage case
Optional Accessories
- Thermal Imager Car Charger (TI-CAR CHARGER)
- Introduction to Thermography Principles Book (BOOK-ITP)
- Additional Smart Battery (FLK-TI-SBP3)
- Additional Smart Battery Charger (FLK-TI-SBC3B)
- Thermal Imager Visor For Ti400-Ti300-Ti200 (FLK-TI-VISOR3)
- Tripod Mounting Accessory Ti400-Ti300-Ti200 (TI-TRIPOD3)
