GW Instek Announces the New PEL-3000AE Programmable D.C. Electronic Load

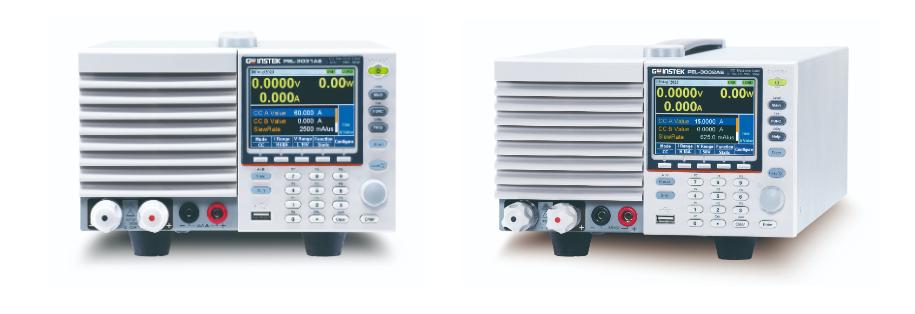

GW Instek launches new PEL-3000AE series programmable single-channel electronic load. In the series, PEL-3031AE provides 300W (1V~150V/60A) and PEL-3032AE provides 300W(2.5V~500V/15A) current sink capability. Inherited from the PEL-3000 series, PEL-3000AE has an easy-to-read LCD panel and user-friendly interface. This model features high speed and accurate measurement capability for electronic component, battery, portable charger and power products that require low to medium power consumption.

The PEL-3000AE series is designed for current sink operation starting from 60mA and aims at measurement applications, including charger, adapter, various power supply equipment, and portable charger.

The PEL-3000AE has seven operating modes. Among them, four basic operating modes are constant current, constant voltage, constant resistance, and constant power. Three other combined operating modes are constant current + constant voltage, constant resistance + constant voltage, constant power + constant voltage. Users can select operating modes based upon products' test requirements. For C.C. mode, electronic load will sink a constant current according to the set current value; for C.V. mode, electronic load will attempt to sink sufficient current to control the source voltage to the programmed value; for C.R. mode, electronic load will sink a current linearly proportional to input voltage according to the set resistance value; for C.P. mode, electronic load will initiate load power sinking operation (load voltage x load current)in accordance with the programmed power setting.

To meet the requirements of different test conditions, the Static function is to sink a constant current; the Dynamic function is to periodically switch between two sink conditions, and the Sequence function is to provide tests for more than two sink conditions. The sequence function can be divided into Normal Sequence and Fast Sequence. Normal Sequence is the most flexible mean of generating complex sequences that can facilitate users to establish a set of changing current sink conditions based upon different sinking conditions (CC, CR, CV or CP mode) and time (adjustable range: 1ms to 999h 59 min 59s).

The built-in BATT Test Automation of PEL-3000AE provides battery discharge applications with more flexible discharge stop setting as well as rise and fall Slew Rate for discharge current settings. OCP, OPP test Automation for DUT (ex. Power Supply), provide users with high resolution measurement values to verify DUT's activation point. Provide users with measurement results so as to help them determine whether DUT's actual over protection activation point meets the regulations. Other than that, PEL-3000AE provides users with analog control terminal to control PEL-3000AE from external voltage, external resistance and switch. Analog control terminal can also monitor electronic load's status and display protective alarms.

PEL-3031AE - Programmable D.C. Electronic Load

GW Instek launches new PEL-3000AE series programmable single-channel electronic load. In the series, PEL-3031AE provides 300W (1V~150V/60A) and PEL-3032AE provides 300W(2.5V~500V/15A) current sink capability.

by quote only (USD)

GW Instek launches new PEL-3000AE series programmable single-channel electronic load. In t...

View Product

PEL-3032AE - (500V/ 15A/ 300W) Programmable D.C. Electronic Load

GW Instek launches new PEL-3000AE series programmable single-channel electronic load. In the series, PEL-3031AE provides 300W (1V~150V/60A) and PEL-3032AE provides 300W(2.5V~500V/15A) current sink capability.

by quote only (USD)

GW Instek launches new PEL-3000AE series programmable single-channel electronic load. In t...

View Product
